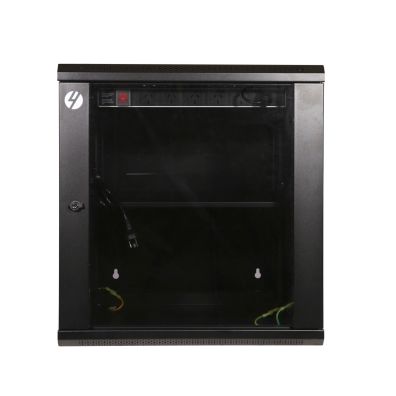

4Cabling 12RU 600mm Wide x 600mm Deep Hinged Wall Mount Server Rack
4Cabling 12RU 600mm Wide x 600mm Deep Hinged Wall Mount Server Rack
- Reversible Tempered Glass Front Door
- 2-Way Ceiling Mount Fan Kit and 6-way Rack Mount Power Rail Included
- Constructed from High-Quality Cold-Rolled Steel
- Designed/built to ANSI-310-D, IEC 297-2, DIN 41491/41494 Standards
4Cabling 12RU 600mm Wide x 600mm Deep Hinged Wall Mount Server Rack
Our 4Cabling 12RU 600mm Wide x 600mm Deep Hinged Wall Mount Server Racks have been designed as a cost-effective data management solution for installers and customers who require quick installation and great value for money. Our server racks are designed to be easily wall-mounted and are made of solid cold-rolled steel with welded construction for added strength.
The server rack is supplied fully assembled with a solid top and base, plus removable side panels, and a front glass door all lockable for added security. This network cabinet provides flexibility for customers who know exactly what they require of their server rack. Possible usage applications include housing small servers, DVR, security equipment, routers, patch panels, switches and rack-mount equipment, Telephone Systems, PABX equipment, and Network and Communications Equipment.
Cable access is achievable via the roof or base by removable gland plates. 4Cabling server racks are built around universal 19" standards, to deliver compatibility with both leading vendor equipment manufacturers as well as OEM brands. A wide range of 19" server rack accessories are available from 4Cabling to complement this cabinet as well as the rest of our range of quality server racks.
FEATURES
- Supplied fully assembled
- Constructed from High-quality Cold-rolled Steel
- Rails 2mm, Frame and Doors 1.2mm, Panels, Shelves and Cable Management 1.2mm
- Lockable Tempered Glass Front Door With Cam-Lock
- Hinged swing frame enclosure with Reversible Drop Hinge
- Lockable Solid Steel Side & Back Doors
- Reversible Front Door
- 2-way Ceiling Mount Fan Kit
- 6-way Rack Mount Power Rail
- 1 x Fixed Shelf
- Removable Side Panels
- Adjustable 19" L Rails Front and Rear of Cabinets with RU Markings
- Cable Entry Glands on the Top and Bottom
- 10 Sets of Cage Nuts
- Loading Capacity 65kg
- Earthed Doors and Side Panels
- Designed/built to ANSI-310-D, IEC 297-2, DIN 41491/41494 Standards
WARRANTY
3-years limited warranty
Specifications
| SKU | 002.013.1260 |
|---|---|
| Brand | 4Cabling |
| Manufacturer Part# | 002.013.1260 |
| Rack RU Size | 12RU |
| Cabinet Type | Wall Mount |
| Colour | Black |
| Surface Finish | Powder Coated, Black Sand Grain |
| External Height | 640mm |
| External Width | 600mm |
| External Depth | 600mm |
| Internal Height | 530mm |
| Internal Width | 470mm |
| Internal Depth (Front Rail to Back Door) | 500mm |
| Load Capacity | 65kg |
| Rails | L Shaped Rails - 2 x Front, 2 x Rear |
| Rail to Rail Depth | 330mm |
| Shelf Quantity | 1 |
| Shelf Depth | 320mm |
| Shelf Width | 470mm |
| Shelf Load Cap | 50kg |
| Gland Plates Top | 2 x (Hinge Rear 350mm(w) x 60mm(d) + Cabinet Rear 250mm(w) x 70mm(d) |
| Gland Plates Rear | 3 x Centre 350mm(w) x 60mm(d) |
| Gland Plates Bottom | 1 x 350mm(w) x 60mm(d) |
| Supplied Fully Assembled | Yes |
| Lockable | Yes |
| Reversible Hinges | Yes |
| Lockable Castors | N/A |
| Tempered Glass | Yes |
| Fans | 2 x Roof Mount |
| PDU | 1 x 6 Way Rackmount |
| Cage Nuts & Inclusions | 10 x Cage Nuts plus 1 x Allen Key |
| Vertical Cable Management | No |
| Carton Height | 690mm |
| Carton Width | 640mm |
| Carton Depth | 650mm |
| Carton Weight | 35kg |
| Warranty | 3 Years |
