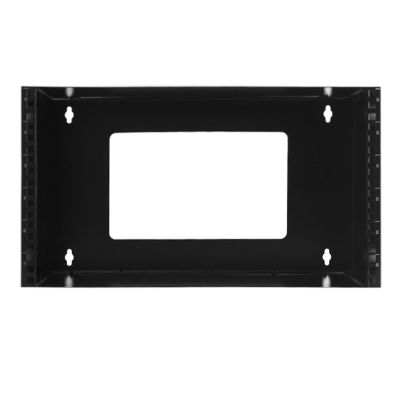

4Cabling 6RU 300mm Deep Wall Mount Server Rack Frame
SKU: 002.007.0620

4Cabling 6RU 300mm Deep Wall Mount Server Rack Frame

$114.95 $104.50
$114.95 $104.50
In stock
  • Finish: Powder coated
  • Material: Steel
  • Dimensions WxDxH: 510mm x 300mm x 274.2m
or
Curbside Pickup

In stock

SKU
002.007.0620

4Cabling 6RU 300mm Deep Wall Mount Server Rack Frame

4Cabling’s wall mounted server rack frames offer an efficient solution for housing your network and communications equipment. Ideal for small spaces, these frames can be easily mounted on walls or within cupboards. Designed to the universal 19” standards, they ensure compatibility with a wide range of equipment, providing robust support and easy access.



These server rack frames feature cable entry cutouts on the back, top, and bottom, ensuring versatile and flexible installation options. Removable top and bottom panels enhance accessibility, making it easier to manage and maintain your equipment. Built with durability in mind, they are powder-coated for a sleek finish and long-lasting use.

FEATURES

  • Removable Panels: Top and bottom panels are removable for easy access to equipment
  • Cable Entry Cutouts: Cutouts on the back, top, and bottom for flexible installation
  • Universal 19” Standards: Ensures compatibility with a wide range of equipment
  • Supplied Fully Assembled: Ready to use with included Cage Nuts

SPECIFICATIONS

  • Finish: Powder coated
  • Material: Steel
  • Colour: Black
  • Dimensions (See Diagram 1): W1: 510mm, H1: 274.2mm, W2: 410mm, H2: 221.8mm, W3: 250mm, H3: 138.9mm
  • Weight: 9.2kg

OTHER SIZES AVAILABLE

Part # 002.007.0420
4RU 300mm Deep Wall Mount Server Rack Frame
Weight:6.2KG
Dimensions: W1: 510mm, H1: 185.3mm, W2: 410mm, H2: 132.9mm, W3: 250mm, H3: 138.9mm
Mounting holes and back cut out based on diagram 1

Part # 002.007.0220
2RU 300mm Deep Wall Mount Server Rack Frame
Weight: 3.2KG
Dimensions: W1: 510mm, H1: 96.4mm, W2: 410mm, H2: 44mm, W3: 250mm, H3: 50mm
Mounting holes and back cut out based on diagram 1

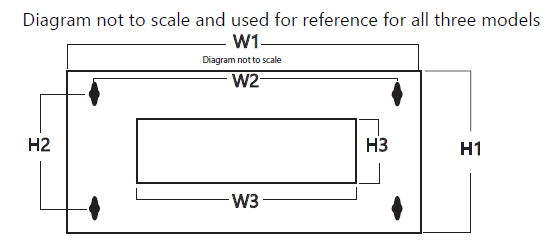

Diagram 1

WARRANTY

3-year limited warranty

Specifications

More Information
SKU 002.007.0620
Brand 4Cabling
Manufacturer Part# 002.007.0620
GTIN 9358148020673
Rack RU Size 6RU
Material Cold-rolled Steel
Surface Finish Powder Coated
Colour Black
Cabinet Type Wall Mount
Gland Plates Bottom 4 x 350mm(w) x 50mm(d)
Warranty 3 Years
