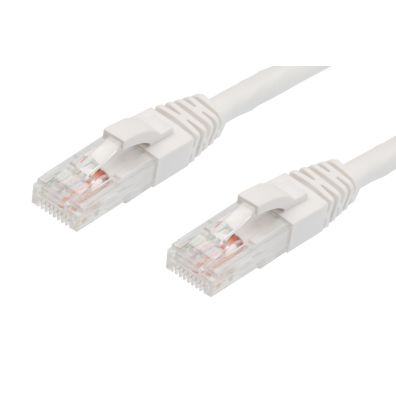

5m RJ45 CAT6 Ethernet Cable. White
Availability: In Stock
FREE SHIPPING ON ORDERS OVER $50
5m RJ45 Cat 6 Ethernet Network Cables White
The 4Cabling Cat 6 Patch Ethernet Cables allow for better signal to noise ratio with minimal loss - which translates to faster and more reliable networks for today’s applications, Cat 6 cable commonly used where performance, reliability, and maximum speed are needed.
Category 6 cable, commonly referred to as Cat-6, is a cable standard for Gigabit Ethernet and other network protocols that are backwards compatible with the Category 5/5e and Category 3 cable standards.
Compared with Cat-5 and Cat-5e, Cat-6 ethernet cable features more stringent specifications for crosstalk and system noise. The cable standard provides performance of up to 250 MHz and is suitable for 10BASE-T, 100BASE-TX (Fast Ethernet), 1000BASE-T / 1000BASE-TX (Gigabit Ethernet) and 10GBASE-T (10-Gigabit Ethernet).
- Cable Type: Cat 6
- Connectors: RJ45-RJ45
- Length: 5m
- Colour: White
- Jacket Material: PVC
- Diameter: 6.2mm
- RJ-45 connectors
- CAT6 stranded cable best used for patch leads
- Impedance Matched - Wire and connectors are carefully matched to virtually eliminate echoing and cancellation, providing high speed, error free transmission
- Gold Plated Contacts - Gold plating eliminates corrosion and provides maximum conductivity to ensure data integrity
- Unique PVC Jacket - Exclusive polymer technology provides unsurpassed durability and flexibility
- Snag Free Boots - Prevent cable kinks and bent pins when removing them from patch panels
- Strain Relief - Increases strength while sustaining maximum flexibility even under extreme conditions
- UL listed
- EIA/TIA and ACMA approved
- ISO/IEC11801:2011(Ed. 2.2)
- EN 50173-1:2011
- EN 50173-2:2007 including amendment A1:2010
- IEC61935-2:2010(Ed.3.0) (transmission requirements)
How to distinguish a Cat 6 plug from a Cat-5 or Cat-5E plug:
To distinguish a Cat-6 plug from a Cat-5 or a Cat-5E plug, just simply look at the way the cable's wires have been terminated at the end of the plug:
- A Cat-5 or a Cat-5E plug will ALWAYS have all eight wires in a single row
- The majority of Cat-6 plugs will have wires in two rows with four wires per row
- Some Cat-6 plugs will have wires in two rows with 6 wires in the top row and 2 wires in the bottom row
1 year limited warranty.
Email email@example.com or phone 1300 855 235 to talk with one of our expert advisers.
|Product Name||5m RJ45 CAT6 Ethernet Cable. White|
|Cable Type||Cat 6 Stranded|
