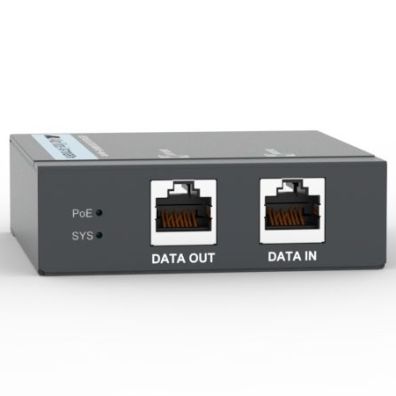

The AT-7101GHTm single-port Power over Ethernet Injector provides data and power through the Ethernet cable to PoE equipped devices, such as wireless access points, IP cameras, VoIP phones, and more.
FEATURES
Connect and power end-points over a single Ethernet cable
Up to 60W (802.3bt) power sourcing
Powered Device (PD) detection
Extend PD reach by up to 100 meters
Multi-Gigabit (1/2.5/5Gbps) network connectivity
Overload and short circuit protection
Lightweight compact design
Plug-and-Play deployment
Flexible installation with wall and DIN rail mounting options
SPECIFICATIONS
Standards:
IEEE 802.3 10T Ethernet
IEEE 802.3u 100TX
IEEE 802.3ab 1000T
IEEE 802.3bz 2.5GBASE-T and 5GBASE-T
IEEE 802.3af PoE
IEEE 802.3at PoE+
IEEE 802.3bt PoE++
Interfaces:
Two RJ-45 copper connectors supporting Ethernet networks running at 1/2.5/5Gbps, and older networks running at 10/100Mbps
