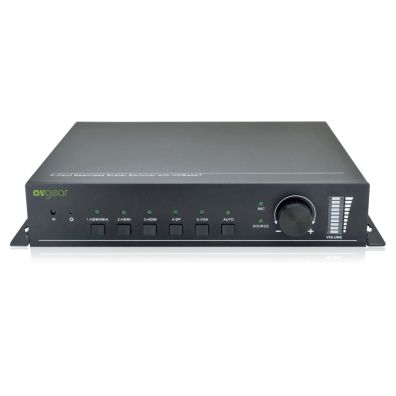

The AVG-SC51TS is a compact seamless scaler switcher with 5 video inputs and 3 audio inputs. The VGA input supports VGA, YPbPr, and C-Video, ensuring the scaler switcher is compliant with multiple video signal types. It is controllable via the front panel, IR, RS232, and a web-based GUI. The AVG- SC51TS scales & switches any video signal to the HDMI output and the HDBaseT output simultaneously.
Features
5 Video Inputs: 1 HDMI/MHL, 2 HDMI, 1 Display Port & 1 VGA
VGA input supports C-Video, YPbPr and VGA
MIC input supports balanced/unbalanced signal
3 Level MIC input, supports a condenser microphone, dynamic microphone, and wireless microphone
48V Phantom power available
Upscale to HDBaseT & HDMI simultaneously up to 1080P.
Maximum HDBaseT transmission distance up to 70M over a single CAT5e / CAT6a cable
Supports PoH
Output resolution is selectable
HDMI 1.4 and HDCP2.2 compliant
Front panel lockout feature
Controllable via front panel, IR, RS232, and web-based GUI
Controllable via HDBT receiver AVG-HD300SR at the display end.
CEC control

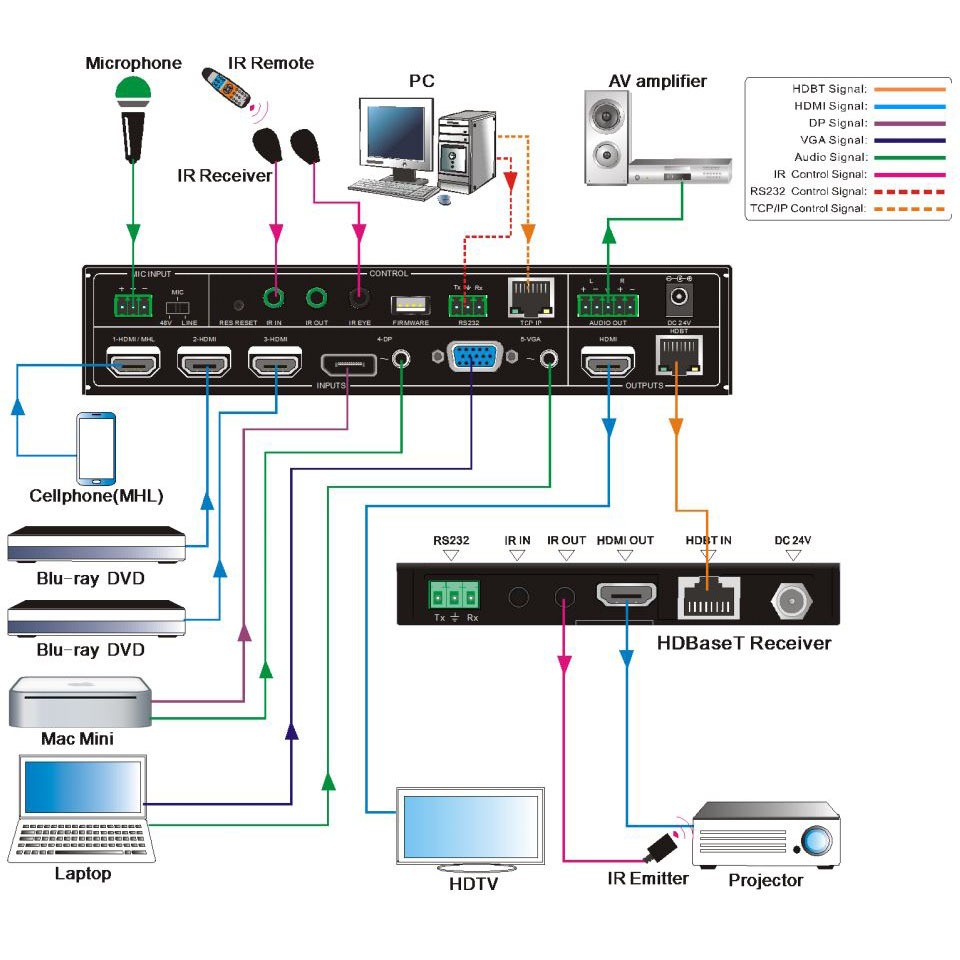

Application
Warranty
1-year limited warranty.
