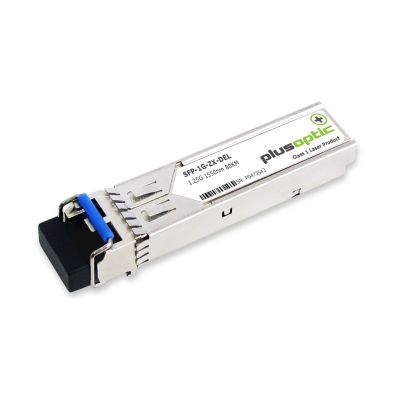

Dell compatible 1.25G, SFP, 1550nm, 80KM Transceiver, LC Connector for SMF with DOM

These Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The transceiver consists of five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the DFB laser and the PIN photo-detector .The module data link up to 80KM in 9/125um single mode fibre. The optical output can be disabled by a TTL logic high-level input of Tx Disable, and the system also can disable the module via I2C. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner. The system can also get the LOS (or Link)/Disable/Fault information via I2C register access.

• Up to 1.25Gb/s data link with DDM
• DFB laser transmitter and PIN photo-detector
• Up to 80km on 9/125µm SMF
• Hot-pluggable SFP footprint
• Duplex LC/UPC type pluggable optical interface
• Low power dissipation
• Metal enclosure, for lower EMI
• RoHS compliant and lead-free
• Support Digital Diagnostic Monitoring interface
• Single +3.3V power supply
• Compliant with SFF-8472
• Case operating temperature

  • Commercial: 0°C to +70°C
  • Extended: -10°C to +80°C
  • Industrial: -40°C to +85°C

• Switch to Switch Interface
• Gigabit Ethernet
• Switched Backplane Applications
• Router/Server Interface
• Other Optical Links

3-years limited warranty
