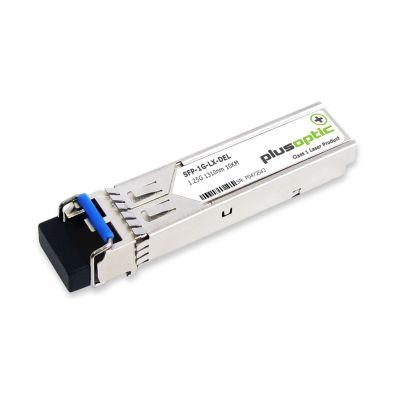

Dell compatible (320-2879 407-10436 790-10071) 1.25G, SFP, 1310nm, 10KM Transceiver, LC Connector for SMF with DOM | PlusOptic SFP-1G-LX-DEL
SKU: SFP-1G-LX-DEL

Dell compatible (320-2879 407-10436 790-10071) 1.25G, SFP, 1310nm, 10KM Transceiver, LC Connector for SMF with DOM | PlusOptic SFP-1G-LX-DEL

$60.50 $55.00
$60.50 $55.00
In stock
Dell compatible SFP 1.25G Transceiver for SMF with a reach of 10KM. Fully compliant with Dell 320-2879, 407-10436, 790-10071
or
Curbside Pickup

In stock

SKU
SFP-1G-LX-DEL

Dell compatible (320-2879 407-10436 790-10071) 1.25G, SFP, 1310nm, 10KM Transceiver, LC Connector for SMF with DOM | PlusOptic SFP-1G-LX-DEL

PLUSOPTIC’s SFP-1G-LX-DEL Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The transceiver consists of five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the FP laser and the PIN photo-detector. The module data link up to 10KM in 9/125um single mode fiber.



The optical output can be disabled by a TTL logic high-level input of Tx Disable, and the system also can disable the module via I2C. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner. The system can also get the LOS (or Link)/Disable/Fault information via I2C register access.

FEATURES

  • Up to 1.25Gb/s data links
  • FP laser transmitter and PIN photo-detector
  • Up to 10km on 9/125µm SMF
  • Hot-pluggable SFP footprint
  • Duplex LC/UPC type pluggable optical interface
  • Low power dissipation
  • Metal enclosure, for lower EMI
  • RoHS compliant and lead-free
  • Support Digital Diagnostic Monitoring interface
  • Single +3.3V power supply
  • Compliant with SFF-8472
  • Case operating temperature
  • Case operating temperature
    • Commercial: 0°C to +70°C

SPECIFICATIONS

  • Switch to Switch Interface
  • Gigabit Ethernet
  • Switched Backplane Applications
  • Router/Server Interface
  • Other Optical Links

WARRANTY

3-years limited warranty

Specifications

More Information
SKU SFP-1G-LX-DEL
Manufacturer Part# SFP-1G-LX-DEL
GTIN 9350888069912
Compatible Brand Dell
Device Type SFP
Transmission Mode SMF
Max Distance 10km
Wave Length 1310nm
Max Data Rate 1.25Gbps
Terminations LC
Warranty 3 Years
