What are your Pre-Terminated Fibre Requirements?

We have a wide range of options available

Our fully tested pre-terminated fibre cables are manufactured in Australia. They can be made to the length you need, with a variety of options, such as core count, mode and connector type. If you do not see the option for what you need, please speak to our friendly staff who may still be able to assist.




1. CONNECTOR

  • LC (LC/UPC)
  • LC/APC
  • SC (SC/UPC)
  • SC/APC
  • FC
  • ST

2. CORE COUNT

  • 2 Cores
  • 6 Cores
  • 12 Cores
  • 24 Cores

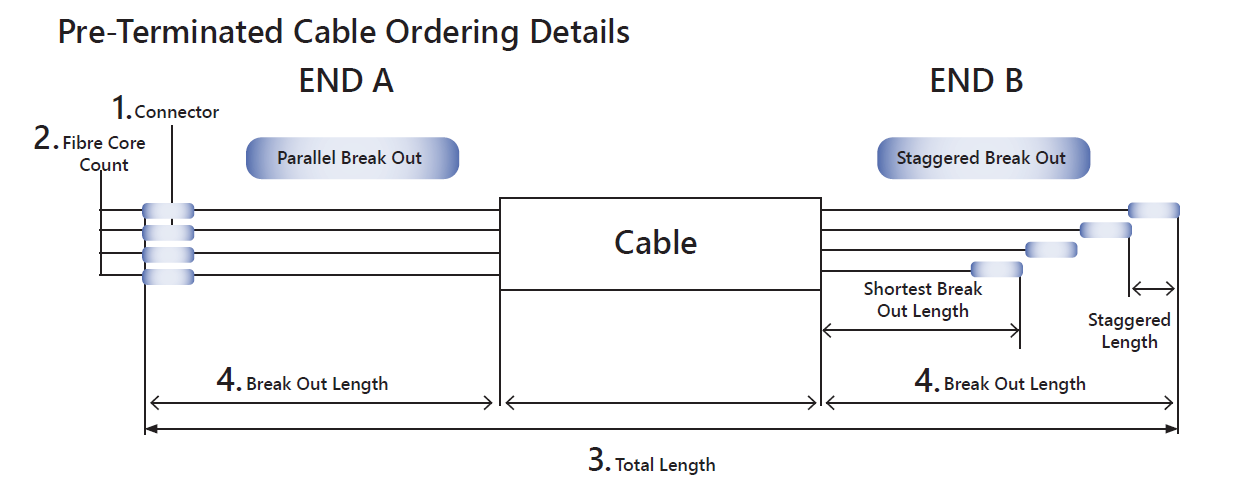

3. TOTAL LENGTH

  • The total length is measured
    from the tip of the cables.
  • If staggered it is measured
    from the longest stager

4. BREAKOUT

  • Breakout Length
    (default is 400mm)
  • Stagger Length
    (default is 40mm)
  • Parallel/Fanned
    (no staggering)
  • 9μm/0.9mm Oversleeving
  • 2mm Oversleeving
  • 3mm Oversleeving

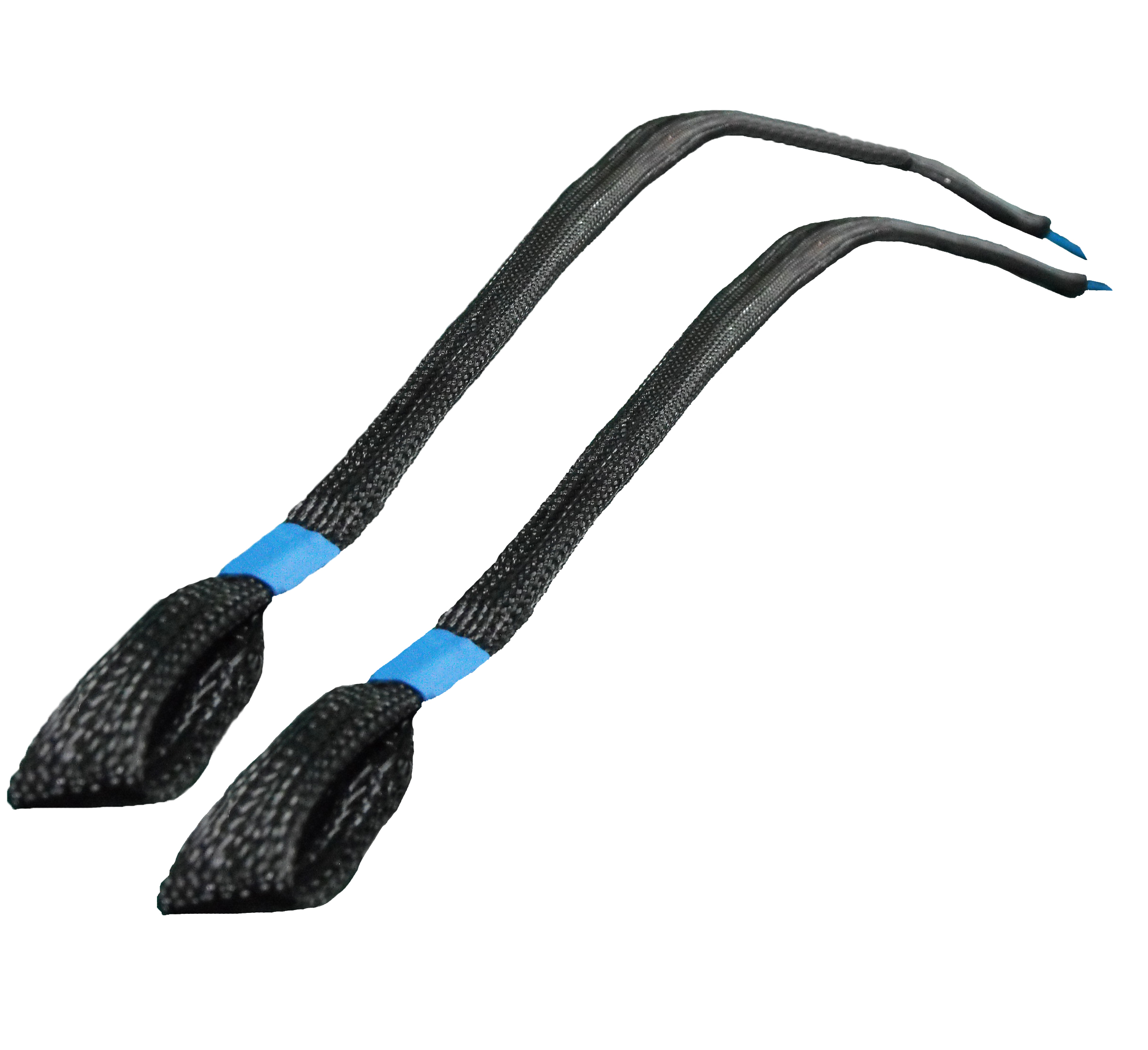

5. PULLING SOCKS

  • One end
  • Both ends
  • None

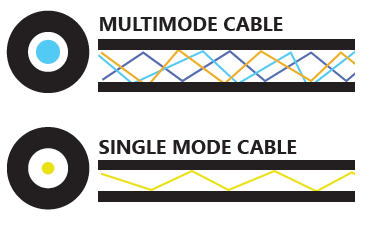

6. CABLE MODES

  • OS1/OS2 (Singlemode)
  • OM3 (Multimode)
  • OM4 (Multimode)
  • Composite
    (combination of both
    Singlemode and Multimode
    cores in the one cable)

To request a quote, simply fill in the form below
