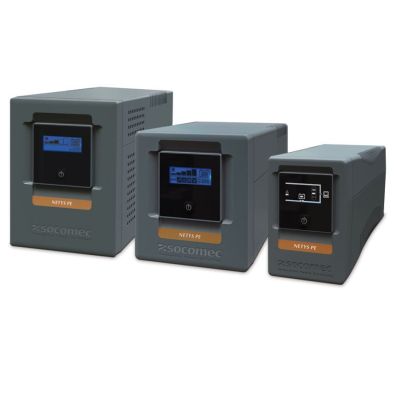

The NeTYS PE 1000VA is line Interactive and the ideal way to protect IT applications at home, the office, or in retail environments. Perfect for CAD and graphics workstations, multimedia peripherals, LCD screens, monitors and Point of Sale systems. This unit provides 45 minutes of back-up time, see the Technical Data sheet below for details on the differences between each model.
Features
Cost-effective way to protect SOHO or POS applications.
Easy to use control panel with graphical LCD/LED monitor.
Protect from network power cuts and voltage fluctuations.
Integrated AVR to stabilise output voltage, avoid drops when switching to battery.
Simple connection: IEC 320 sockets for IT peripherals.
Integrated NTP protection for LAN/ADSL connection against the risk of data line overvoltage.
Specs
Quasi Sinewave.
1000VA.
Tower only.
USB comm's port and cable.
Local View free software.
Data line protection ports.
2 x 3 pin Aust output sockets.
Includes 3 pin Australian input cord.
Connections
1. Output sockets 2. USB port 3. Mains input cable 4. Circuit breaker 5. NTP data line suppressor 6. Fan
Control panel
1. Alarm 2. Operation with battery 3. Normal operation 4. On / Off 5. Load present 6. Load level (5 steps) 7. General Alarm 8. Battery fault / Replace the battery 9. Overload 10. Battery capacity 11. Normal mode / Battery mode (flashing) 12. Automatic Voltage / Regulation active
Technical data
Sn [kVA]
650 VA
800 VA
1000 VA
1500 VA
2000 VA
Pn [kW] (0°C-35°C)
360 W
480 W
600 W
900W
1200W
Input / output
1/1
Input
Mains voltage
177 V - 290 V
Rated frequency
50 / 60 Hz with automatic selection
Mains connection
Cable with plug
Output
Automatic Voltage Regulation (AVR)
Rated voltage
230V ±10%
Rated frequency
50/60 Hz
Wave form
Step wave
Protection
Overload, significant discharge and short circuit
Sockets
650-850: 2 x Australian standard
1000-1500-2000: 4 x Australian standard
Batteries
Type
Sealed lead-acid maintenance free - expected life 3/5 years
Back-up time (1)
15 Min
20 Min
45 Min
55 Min
60 Min
Communication
Interface
USB
Local communication software
Local View
Telephone protection
NTP data line suppressor
UPS Cabinet
Dimensions (W x D x H) [mm]
100 x 290 x 145
145 x 345 x 165 mm
145 x 390 x 205 mm
Weight
5.2 kg
6 kg
9.7 kg
11.2 kg
12 kg
Standards
Safety
AS 62040-1
EMC
AS 62040-2
Product declaration
CE, C-Tick (N876)
Warranty
2-year limited warranty.
