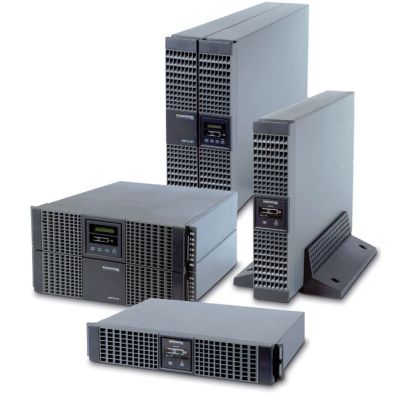

The NETYS RT 1700 Rack 2U UPS Tower is the complete solution for IT infrastructures. It is the solution for switching, storage, servers and networking devices, VoIP communication systems, structured cabling systems, control systems and Video surveillance systems
FEATURES
Simple to install
IEC input and output connections (1100?3000 VA) or terminal input and output connections with built-in magnetothermal input switch (5000-11000 VA
Compact footprint for installation in rack cabinets
Attractive design
Easy to use
No configuration necessary on first startup
Wide range of communication protocols for integration into LAN networks or Building Management Systems(BMS)
Clear LED interface with buzzers that immediately indicate the operating status of the UPS, even for less specialist users (1100?3000 VA)
LCD display with menu available in 6 languages (5000-11000 VA)
Meets practical needs
Online double conversion technology with sinusoidal waveform, completely filters out all disturbances from / to the mains power supply and ensures maximum protection of the utility
Modular battery extension (EBM) to meet all back-up time requirements, even after installation
Possibility of 1+1 parallel redundant configuration to maximise the availability of critical utilities, even in the event of a module breakdown (5000?11000 VA).
SPECIFICATIONS
Online Double Conversion
1700VA
Universal tower + 2U rack inc rail kit,
USB & RS232 comm's port & cable
Optional SNMP card available
6 x 10A IEC outlets, includes 3 pin Aust input cord + 1 x Aust output conversion cord & 1 x IEC cord
Standard electrical features
Built-in backfeed protection
Protection against atmospheric phenomena (NTP) for telephone / ADSL modems
RJ11 connection for Emergency Power Off (EPO)
Connection for battery extension modules
Port for parallel operation (5000-11000 VA)
Electrical options
1+1 parallel module (5000-11000 VA)
Manual bypass without interruption (5000-11000 VA)
Battery extension modules
Standard communication features
LOCAL VIEW: ideal UPS monitoring and shutdown point-to-point solution for Windows® operating system
UNI VISION: software for the control and automatic shutdown of applications connected to Linux
UNI VISION PRO: advanced user interface via serial link and multiple shutdown management for several operating systems
HID: UPS management based on Windows® embedded service - USB interface (1100-3000 VA).
MODBUS/JBUS RTU
RT-VISION: professional WEB/SNMP interface for UPS monitoring and shutdown management of several operating systems (5000-11000 VA)
Communication options
RT-VISION: professional WEB/SNMP interface for UPS monitoring and shutdown management of several operating systems (1100-3000 VA)
Dry-contact interface
CONNECTIONS
1. Mains input socket (IEC 320) 2. Fan 3. Output socket (full power) 4. Telephone / modem line protection 5. EPO (Emergency Power Off) input 6. RS232 interface (JBUS protocol) 7. USB port 8. Input protection 9. Output sockets (IEC 320 - 10 A) 10. Battery extension connector 11. Slot for optional communication boards 12. Battery extension connector 13. Output terminals 14. Input terminals 15. Input switch 16. RJ45 LAN ethernet connector 17. Parallel port connector
Battery extension
Netys RT 1100-3000 VA - Battery extension
Netys RT 5000-11000 VA - Battery extension
Control panel
1. Yellow LED lit. Operation in bypass mode 2. Green LED lit. Mains healthy 3. OFF button 4. Green LED lit. Normal operation (inverter in-line) 5. ON / TEST and buzzer override button 6. LED bar. Depending on the situation, this indicates either the charge level or the capacity of the battery 7. Navigator buttons 8. Alphanumeric LCD display 9 Green LED lit. Status of the load.
Parallel redundant operation for business continuity
To achieve the highest level of availability and to power critical utilities, NETYS RT UPS modules above 3 kVA can be configured for 1:1 redundancy. Redundant operation (1+1) means: the system incorporates one more UPS module than is needed to protect the load ; in the event of a breakdown, it guarantees sufficient power supply capacity to the load by maintaining online protection. Parallel technology is based on the principle of load sharing, whereby both units are always kept active. In a redundant configuration, overall system availability is much higher than a conventional UPS system using similar technology. 1+1 redundant configuration does not require additional circuits and can therefore be set up at a later date, simply by using two UPS modules and a collector / manual bypass module which simplifies cabling and maintenance of the UPS installation. To further streamline the solution, it is also possible to select between operation with separate battery or shared battery, which is extremely useful in the case of applications requiring high levels of autonomy.
Warranty
2-year limited warranty.
