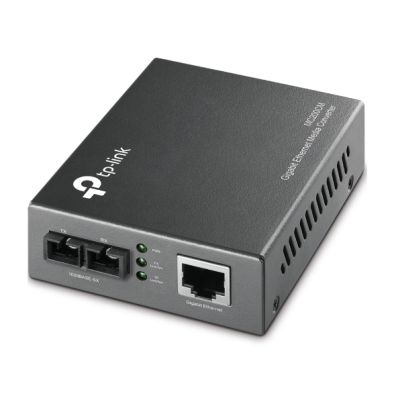

TP-Link MC200CM: Gigabit Multi-Mode Media Converter

Part#:
006.016.0045
$88.00 inc. GST

Availability: In Stock In Stock

Pick Up

FREE SHIPPING ON ORDERS OVER $50

Details

TP-Link | MC200CM: Media Converter RJ45-SC GIGABIT Multimode

The MC200CM is a media converter designed to convert 1000BASE-SX fibre to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fibre cable utilising the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fibre optic distances utilising multi-mode fibre up to 0.55 kilometres.

FEATURES

  • Complies with IEEE 802.3ab and IEEE 802.3z
  • Provides switch configuration of Force /Auto transfer mode for FX port
  • Extends fibre distance up to 0.55km
  • Works at 1000Mbps in Full-Duplex mode for both TX port and FX port
  • Supports auto MDI/MDIX for TX port
  • Provides switch configuration of Force /Auto transfer mode for FX port
  • Easy-to-view LED indicators provide status to monitor network activity easily
  • External power supply

SPECIFICATIONS

  • Standards and Protocols: IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
  • Basic Function: Full Duplex Flow Control (IEEE 802.3x); Extends fibre distance up to 0.5km using 50/125um fibre; Extends fibre distance up to 0.22km using 62.5/125um fibre
  • Ports: 1 1000M SC port; 1 1000M RJ45 port (Auto MDI/MDIX)
  • Wave Length: 850nm
  • Network Media 1000BASE-FX: Multi-Mode Fibre
  • Network Media 1000BASE-T: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
  • LED Indicators: PWR, LINK, RX
  • Dimensions: 94.5x73.0x27.0 mm
  • Power Supply: External Power Adapter
  • Safety & Emission: FCC, CE, RoHS
  • Operating Temperature: 0℃~40℃
  • Storage Temperature: -40℃~70℃
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing

WARRANTY

  • Warranty 3-years
  • 4Cabling is an authorised distributor of TP-LINK products. We guarantee that this product is authorised Australian stock and comes with a manufacturer warranty in addition to 4Cabling's warranty.

    WHY 4CABLING?



    • Australia’s leading importer & wholesaler of 19” server racks, copper, ethernet cable, fibre optic leads & structured networking products
    • ISO 9001, NSW Govt. & GITC (QLD Govt.) approved supplier
    • Secure online shopping 24/7
    • A loyal customer base of 100k+ who trust us for their data & electrical needs
    • Over 3000 quality products in stock ready to go
    • All products are approved as per local Australian standards
    • Warranty & peace of mind return policy
    • Lightning fast delivery nationwide
    • Expert advice
    • Proudly 100% Australian owned & operated





    NEED HELP?

    Email sales@4cabling.com.au or phone 1300 855 235 to talk with one of our expert advisers.

    Specifications

    MEDIA CONVERTER & MODULE
    Standards and Protocols IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
    Basic Function Full Duplex Flow Control (IEEE 802.3x)
    Extends fibre distance up to 0.5km using 50/125um fibre
    Extends fibre distance up to 0.22km using 62.5/125um fibre
    Ports 1 1000M SC/UPC port
    1 1000M RJ45 port (Auto MDI/MDIX)
    Wave Length 850nm
    Network Media 1000BASE-FX Multi-mode Fibre
    Network Media 1000BASE-T UTP category 5, 5e cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
    LED Indicators PWR, LINK, RX
    Dimensions (W*D*H) 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)
    Power Supply External Power Adapter
    Max Power Consumption 5.5W
    Safety & Emission FCC, CE, RoHS
    Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
    Storage Temperature: -40℃~70℃ (-40℉~158℉)
    Operating Humidity: 10%~90% non-condensing
    Storage Humidity: 5%~90% non-condensing

    Additional Information

    More Information
    Product Name TP-Link MC200CM: Gigabit Multi-Mode Media Converter
    Part#: 006.016.0045
