TP-Link TL-SG1218MPE JetStream 16-Port Gigabit Easy Smart PoE/PoE+ Switch

Part#:
TP.TLSG1218MPE
$649.00 inc. GST

Availability: In Stock In Stock

Pick Up

• POE suport up to 192W total
• Port based VLAN

Details

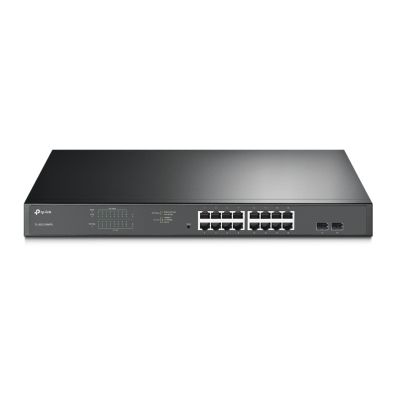

TP-Link TL-SG1218MPE JetStream 16-Port Gigabit Easy Smart PoE/PoE+ Switch

Easy Smart Switch is an ideal upgrade from Unmanaged Switch, designed for Small Office and Home Office networks. The switch supports the following features:

  • Traffic monitoring: Port mirroring, loop prevention and cable test enable the administrator to monitor traffic of the network effectively.1
  • VLAN: MTU VLAN, Port based VLAN and 802.1Q VLAN can restrict broadcast domain, enhance network security and help manage devices easily.
  • QoS: Port based QoS, 802.1P based QoS and DSCP/802.1P based QoS optimize traffic on your business network, and keep latency-sensitive traffic moving smoothly. Bandwidth control helps distribute and utilize network bandwidth reasonably. Storm control helps avoid network broadcast storm.
  • PoE: PoE (Power over Ethernet) is a remote power supply function. With this function, the switch can supply power to the connected devices over twisted-pair cables

Features

  • 16 10/100/1000Mbps RJ45 Ports PoE/PoE+ Switch
  • PoE power budget is up to 192W, making it ideal for small to medium business surveillance system
  • Port Priority is able to guarantee the quality of sensitive application like video monitor
  • Intelligent power management can protect the switch from overload
  • QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV.

WARRANTY

Why 4Cabling?

  • Australia’s leading importer & wholesaler of 19” server racks, copper, ethernet cable, fibre optic leads & structured networking products
  • ISO 9001, NSW Govt. & GITC (QLD Govt.) approved supplier
  • Secure online shopping 24/7
  • A loyal customer base of 100k+ who trust us for their data & electrical needs
  • Over 3000 quality products in stock ready to go
  • All products are approved as per local Australian standards
  • Warranty & peace of mind return policy
  • Lightning-fast delivery nationwide
  • Expert advice
  • Proudly 100% Australian owned & operated


NEED HELP?

Email sales@4cabling.com.au or phone 1300 855 235 to talk with one of our expert advisers.

Specifications

HARDWARE FEATURES
Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
Interface 16 PoE+ 10/100/1000Mbps RJ45 Ports
2 Fibre Ports
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-X MMF, SMF
Fan Quantity 2 Fans
Physical Security Lock Yes
Power Supply 100-240V AC, 50/60 Hz
Backup Bandwidth 7.2 Gbps
PoE+ Ports(RJ45) Standard: 802.3at/802.3af compliant
PoE Ports: Port1- Port16
PoE Power Budget: 192W
Mac Address Table 8K
Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm)
Mounting Rack-Mountable
Max Power Consumption 18.73 W (220/50Hz. no PD connected)
217.22 W (220/50Hz. with 192W PD connected)
Max Heat Dissipation 63.89 BTU/h (no PD connected)
741.15 BTU/h (with 192W PD connected)
PERFORMANCE
Switching Capacity 36 Gbps
Packet Forwarding Rate 23.8 Mbps
MAC Address Table 8K
Packet Buffer Memory 4.1 Mbit
Jumbo Frame 9 KB
SOFTWARE FEATURES
Quality of Service Support Port-based 802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN Support up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Management Web-based GUI
Easy Smart Configuration Utility
Advanced Features Compatible With IEEE 802.3at/af compliant PDs
Port Priority Mode
Extend Mode (Up to 250m PoE power supply and data transmission)
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control
Transmission Method Store-And-Forward
OTHERS
Certification CE, FCC, RoHS
Package Contents TL-SL1218MP, Power Cable, Installation Guide, Two mounting brackets and the fittings
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
Warranty Limited 5-Year Warranty
For further information on our warranty policy please visit: http://www.tp-link.com.au/support/rma

Additional Information

More Information
Product Name TP-Link TL-SG1218MPE JetStream 16-Port Gigabit Easy Smart PoE/PoE+ Switch
Part#: TP.TLSG1218MPE
