4Cabling 37RU 600mm Wide x 1000mm Deep Server Rack
4Cabling 37RU 600mm Wide x 1000mm Deep Server Rack
- Reversible Tempered Glass Front Door
- 4-Way Ceiling Mount Fan Kit and 6-Way Rack Mount Power Rail Included
- Constructed from High-Quality Cold-Rolled Steel
- Designed/built to ANSI-310-D, IEC 297-2, DIN 41491/41494 Standards

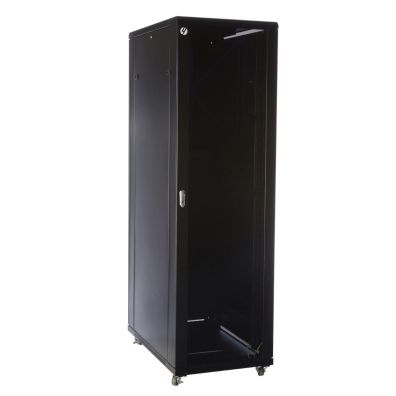

4Cabling 37RU 600mm Wide x 1000mm Deep Free Standing Server Rack
Our 4Cabling Full Height 37RU 600mm Wide x 1000mm Deep Free Standing Server Racks have been designed as a cost-effective data management solution for installers and customers who require quick installation and great value for money. Our server racks are designed to be easily set up and are made of solid cold-rolled steel with welded construction for added strength and come in both Half Height and Full Height Server Rack sizes.
The server rack is supplied fully assembled with solid top and base, plus removable side panels, front glass door all lockable for added security. This network cabinet provides the flexibility for customers who know exactly what they require of their server rack. Possible usage applications include housing small servers, DVR, security equipment, routers, patch panels, switches and rackmount equipment, Telephone Systems and PABX equipment and Network and Communications Equipment.
Cable access is achievable via roof or base by removable gland plates. 4Cabling server racks are built around universal 19" standards, to deliver compatibility with both leading vendor equipment manufacturers as well as OEM brands.
A wide range of 19" server rack accessories are available from 4Cabling to complement this cabinet as well as the rest of our range of quality server racks.
FEATURES
- Supplied fully assembled
- Constructed from High-Quality Cold-Rolled Steel
- Rails 2mm, frame and doors 1.2mm, panels, shelves and cable management 1.2mm
- 4-Way Ceiling Mount Fan Kit
- 6-Way Rack Mount Power Rail
- 40 sets of cage nuts
- 3 x fixed shelves
- Lockable tempered glass front door, solid lockable steel side and back doors
- Reversible front door
- Adjustable 19" L rails front and rear of server rack
- Levelling feet and lockable castor wheels
- Cable entry glands on the top and bottom
- Earthed doors and side panels
- Static loading capacity 800kg
- Designed/built to ANSI-310-D, IEC 297-2, DIN 41491/41494 standards
WARRANTY
3-years limited warranty
Specifications
| SKU | 002.001.3710 |
|---|---|
| Brand | 4Cabling |
| Manufacturer Part# | 002.001.3710 |
| Rack RU Size | 37RU |
| Cabinet Type | Full Height |
| Colour | Black |
| Surface Finish | Powder Coated, Black Sand Grain |
| External Height | 1840mm |
| External Width | 600mm |
| External Depth | 1000mm |
| Internal Height | 1620mm |
| Internal Width | 470mm |
| Internal Depth (Front Rail to Back Door) | 850mm |
| Load Capacity | 800kg |
| Rails | L Shaped Rails - 2 x Front, 2 x Rear |
| Rail to Rail Depth | 710mm |
| Shelf Quantity | 3 |
| Shelf Depth | 650mm |
| Shelf Width | 470mm |
| Shelf Load Cap | 50kg |
| Gland Plates Top | 5 x 330mm(w) x 50mm(d) |
| Gland Plates Bottom | 7 x 330mm(w) x 50mm(d) |
| Supplied Fully Assembled | Yes |
| Lockable | Yes |
| Reversible Hinges | Yes |
| Lockable Castors | Yes |
| Castor Height | 70mm |
| Tempered Glass | Yes |
| Fans | 4 x Roof Mount |
| PDU | 1 x 6 Way Rackmount |
| Cage Nuts & Inclusions | 40 x Cage Nuts plus 1 x Allen Key |
| Vertical Cable Management | No |
| Carton Height | 1850mm |
| Carton Width | 630mm |
| Carton Depth | 1030mm |
| Carton Weight | 105kg |
| Warranty | 3 Years |
