4Cabling 6RU 600mm Wide x 400mm Deep Grey Outdoor Wall Mount Cabinet | IP65
SKU: 002.015.0664

4Cabling 6RU 600mm Wide x 400mm Deep Grey Outdoor Wall Mount Cabinet | IP65

Special Price $536.88 $488.07 Regular Price $596.53 $542.30
Special Price $536.88 $488.07 Regular Price $596.53 $542.30
In stock
  • IP65 rating ensures complete dust and rain protection
  • Fully welded powder-coated cold-rolled steel for unmatched durability
  • 3-point swing handle locking system for enhanced security
  • Pre-assembled with adjustable rails and cable management for easy setup
or
Curbside Pickup

Online Delivery

In stock (Nation Wide Delivery)

SKU
002.015.0664

4Cabling 6RU 600mm Wide x 400mm Deep Outdoor Wall Mount Server Rack | IP65 Non-Vented

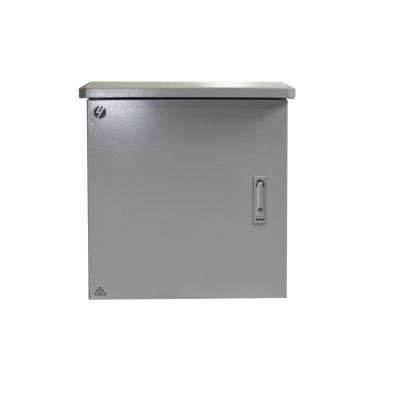

**The image shown above is of the 12RU**



4Cablings Outdoor Wall Mount Server Rack Cabinets are designed to protect your sensitive network equipment from harsh environments. We have included features to safeguard it from the elements, while still keeping the equipment secure.



The outdoor server racks include a high-grade polyurethane door joint strip, rain hood and is secured with a 3-point swing handle locking system. All fixtures are internal to the cabinet to provide a secure solution.

FEATURES

  • Secure door with 3-point locking system
  • Fully welded design for strength and durability
  • Made from powder-coated 1.2mm welded cold-rolled steel
  • Supplied fully assembled, ready to be installed
  • Rain hood included
  • Max rail to rail depth of 340mm that can be adjusted to your needs
  • Front-mounted vertical cable management rings on both sides
  • Round cable glands with removable rubber covers on the base
  • IP65 rated to protect it from dust and rain
  • High-grade polyurethane door joint strip

SPECIFICATIONS

  • External Dimensions: 650mm Wide x 450mm Deep x 400mm High
  • Colour: Grey
  • Protection Rank: IP65 rated standard IEC 60529:2013
  • RU Size: 6RU
  • Material: Cold rolled steel 1.2mm thick
  • Net Weight: 23kg
  • Load Capacity: 130kg

WARRANTY

2-years limited warranty

Specifications

More Information
SKU 002.015.0664
Brand 4Cabling
Manufacturer Part# 002.015.0664
Rack RU Size 6RU
Cabinet Type Outdoor
Colour Grey
Surface Finish Powder Coated
External Height 410mm
External Width 640mm
External Depth 450mm
Internal Height 260mm
Internal Width 470mm
Internal Depth (Front Rail to Back Door) 270mm
Load Capacity 130kg
Rail to Rail Depth 230mm
Gland Plates Bottom 4 x Round Rubber Covered Glands
Supplied Fully Assembled Yes
Lockable Yes
Lockable Castors N/A
Tempered Glass No
Cage Nuts & Inclusions 10 x Cage Nuts
Extra Inclusions 2 keys and 4 Dyno bolts
Vertical Cable Management 4 Rings - 2 mounted on each side at the front
Carton Height 500mm
Carton Width 520mm
Carton Depth 720mm
Hood Dimensions W: 6400mm x D: 450mm x H: 50mm
Earthing Wire Attached at the base of the front door to the side of the cabinet
Warranty 2 Years
