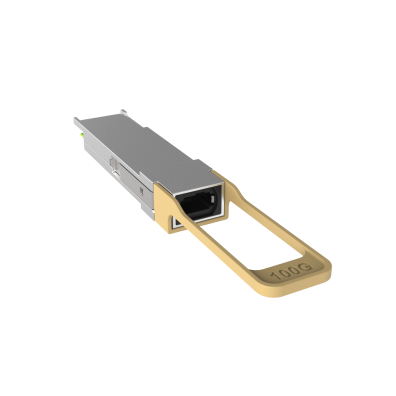

Arista compatible 100G QSFP28 Transceiver, 850nm, Reach up to 100M, MTP/MPO Connector for MMF

This is a Four-Channel, Pluggable, Fibre-Optic QSFP28 SR4 for 100Gigabit Ethernet and Infiniband EDR applications. This transceiver is a high performance module for data communication and interconnect applications. It integrates four data lanes in each direction with 103.1Gbps bandwidth. The length of MNC QSFP28 SR4 is up to 70 metres over OM3 MMF or 100 metres over OM4 MMF. This module is designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38 contact edge type connector. The optical interface uses a 12 fibre MPO connector.

• Hot-pluggable QSFP28 form factor
• Supports 25.78125Gb/s bit rate per channel
• Maximum link length of 70m over OM3 Multimode Fibre (MMF) and 100m over OM4 (MMF）
• 4 channels 850nm VCSEL laser and 4 channels PIN photo detector array
• Single MPO connector receptacle
• Internal CDR circuits on both receiver and transmitter channels
• Case operating temperature range: 0 ~ +70°C
• Single 3.3V power supply
• Power dissipation: <2.5 W
• QSFP28 housing with enhanced EMI shielding

• Data centre and Cloud services
• 100GBASE-SR4 Ethernet
• Infiniband EDR interconnects
• Servers, Switches, Storage and Host Card Adapters

• Compliant with QSFP28 MSA
• Compliant with IEEE 802.3bm
• Compliant with SFF-8636
• RoHS Compliant

2-years limited warranty
