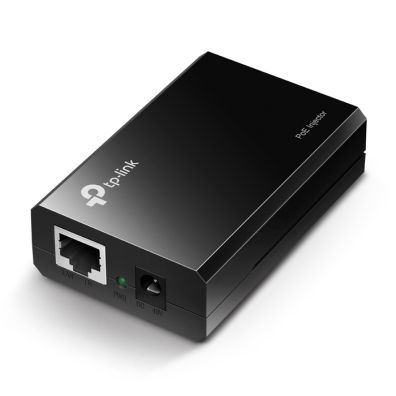

The TP-LINK Power Over Ethernet PoE Injector TL-POE150S fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-LINK’s TL-POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.

 > IEEE 802.3af compliant

 > Auto-determine the necessary power requirements

 > Gigabit speed support

 > Plug-and-Play, requires no configuration

Specifications

Hardware Features

IInterface: 2 10/100/1000Mbps RJ45 Port, AUTO Negotiation/AUTO MDI/MDIX, 1 48VDC POWER INPUT PORT

Dimensions: 80.8x54x24 mm

LED Indicator: PWR

Power Supply: 15.4W (Max. 48VDC)

Software Features

Basic Function: Compatible With IEEE 802.3af Compliant PDs, Delivers Power Up To 100 Metres, Auto-Determine The Necessary Power Requirements

Others

Certification: FCC, CE, RoHS

System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.

Operating Temperature: 0℃ to 40℃

Storage Temperature: -40℃ to 70℃

Operating Humidity: 10% to 90% non-condensing

Storage Humidity: 5% to 90% non-condensing
