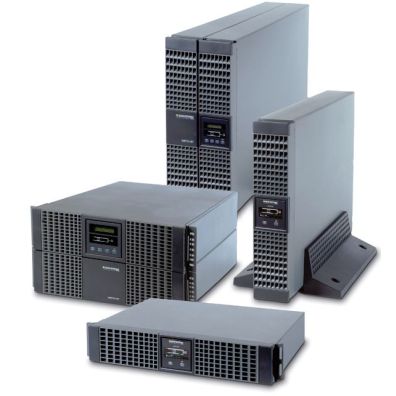

The NETYS RT 1100 rack 2U/ tower UPS is the complete solution for IT infrastructures. It is the solution for switching, storage, servers and networking devices, VoIP communication systems, structured cabling systems, control systems and Video surveillance systems
& Features
Simple to install
• IEC input and output connections (1100?3000 VA) or terminal input and output connections with built-in magnetothermal input switch (5000-11000 VA). • Compact footprint for installation in rack cabinets. • Attractive design.
Easy to use
• No configuration necessary on first startup. • Wide range of communication protocols for integration into LAN networks or Building Management Systems (BMS). • Clear LED interface with buzzers that immediately indicate the operating status of the UPS, even for less specialist users (1100?3000 VA). • LCD display with menu available in 6 languages (5000-11000 VA).
Meets practical needs
• Online double conversion technology with sinusoidal waveform, completely filters out all disturbances from / to the mains power supply and ensures maximum protection of the utility. • Modular battery extension (EBM) to meet all back-up time requirements, even after installation. • Possibility of 1+1 parallel redundant configuration to maximise the availability of critical utilities, even in the event of a module breakdown (5000?11000 VA).
Specifications
Online Double Conversion
1100VA
& Universal tower + 2U rack inc rail kit,
USB & RS232 comm's port & cable
Optional SNMP card available
6 x 10A IEC outlets, includes 3 pin Aust input cord + 1 x Aust output conversion cord & 1 x IEC cord
Standard and Option Features
Standard electrical features
• Built-in backfeed protection. • Protection against atmospheric phenomena (NTP) for telephone / ADSL modems. • RJ11 connection for Emergency Power Off (EPO). • Connection for battery extension modules. • Port for parallel operation (5000-11000 VA).
• LOCAL VIEW: ideal UPS monitoring and shutdown point-to-point solution for Windows® operating system. • UNI VISION: software for the control and automatic shutdown of applications connected to Linux. • UNI VISION PRO: advanced user interface via serial link and multiple shutdown management for several operating systems. • HID: UPS management based on Windows® embedded service - USB interface (1100-3000 VA). • MODBUS/JBUS RTU. • RT-VISION: professional WEB/SNMP interface for UPS monitoring and shutdown management of several operating systems (5000-11000 VA).
Communication options
• RT-VISION: professional WEB/SNMP interface for UPS monitoring and shutdown management of several operating systems (1100-3000 VA). • Dry-contact interface.
Technical Data
Connections
Connections
1. Mains input socket (IEC 320) 2. Fan 3. Output socket (full power) 4. Telephone / modem line protection 5. EPO (Emergency Power Off) input 6. RS232 interface (JBUS protocol) 7. USB port 8. Input protection 9. Output sockets (IEC 320 - 10 A) 10. Battery extension connector 11. Slot for optional communication boards 12. Battery extension connector 13. Output terminals 14. Input terminals 15. Input switch 16. RJ45 LAN ethernet connector 17. Parallel port connector
&
Battery extension
Netys RT 1100-3000 VA - Battery extension
& Netys RT 5000-11000 VA - Battery extension
&
Control panel
1. Yellow LED lit. Operation in bypass mode 2. Green LED lit. Mains healthy 3. OFF button 4. Green LED lit. Normal operation (inverter in-line) 5. ON / TEST and buzzer override button 6. LED bar. Depending on the situation, this indicates either the charge level or the capacity of the battery 7. Navigator buttons 8. Alphanumeric LCD display 9 Green LED lit. Status of the load. &
Technical data
Power
1100 VA / 800 W
1700 VA / 1200 W
2200 VA / 1600 W
3000 VA / 2100 W
5000 VA / 4500 W
7000 VA / 5400 W
9000 VA / 7200 W
11000 VA / 9000 W
Architecture
PFC and automatic bypassonline double conversion VFI with input
Parallel redundant function
-
-
-
-
1+1
1+1
1+1
1+1
Input
Voltage
230 V (1ph) 160~275 Vac; up to 130 Vac @70% load
230 V (1ph) 181~280 Vac up to 100 Vac @50% load
Frequency
50/60 Hz +/-10% (Auto-Selectable)
Power factor / THDi
>0.98 / <6%
>0.99 / <5%
Output
Voltage
230 V (1ph) selectable 200 / 208 / 220 / 240V - 50 or 60 Hz + /- 2 % (+/- 0.05 Hz in battery mode)
Rendement
up to 91% online mode
up to 92% online mode
Overload capability
up to 105% continuously; 125% x 3 min; 150% x 30 sec
up to 105% continuously; 125% x 5 min; 150% x 30 sec
Output connections
6 x IEC 320-C13 (10 A)
6 x IEC 320-C13 (10 A) + 1 x IEC 320-C20 (16 A)
terminals
Battery
Standard autonomy*
8
12
8
10
8
6
8
6
Voltage
24 Vdc
48 Vdc
48 Vdc
72 Vdc
192 Vdc
192 Vdc
240 Vdc
240 Vdc
Recharge time
< 6h to recover 90% capacity
< 6h to recover 90% capacity
Communication
Mimic panel
LED
LCD 6 languages
RS232 (DB9 port) Jbus protocol
•
& •
•
•
•
•
•
•
USB HID protocol
•
•
•
•
-
-
-
-
WEB/SNMP (Ethernet RJ45 port)
option
option
option
option
•
•
•
•
COMM slot
•
•
•
•
•
•
•
•
Dry contacts card
option
option
option
option
option
option
option
option
EPO input (RJ11 port)
•
•
•
•
•
•
•
•
Modem/ADSL surge protection
•
•
•
•
-
-
-
-
Parallel port
-
-
-
-
•
•
•
•
Standards
Performance & topology
EN 62040-3 (VFI-SS-111)
Safety / EMC
EN 62040-1 (TÜV-GS certified) EN 62040-2
Product certifications
CE, TÜV-GS, C-Tick
IP rating
IP20
Environment
Operating ambient temperature
from 0 °C to +40 °C (from 15 °C to 25 °C for best battery life)
Storage temperature range
from -15 °C to +50 °C (from 15 °C to 25 °C for best battery life)
Relative Humidity
0-90% non-condensing
Noise level (ISO 3746)
< 45 dB
< 55 dB
Dimensions & weight
UPS size std (W x D x H)
88.7 x332 x440 mm
88.7 x430 x440 mm
88.7x 430x 440& mm
88.7 x608 x440 mm
177.4 x670 x440 mm
177.4 x670 x440 mm
261.2 x623 x440 mm
261.2 x623 x440 mm
UPS size RACK
2U
2U
2U
2U
2U+2U
2U+2U
3U+3U
3U+3U
UPS weight std
13 kg
21 kg
22 kg
31 kg
15.5+40 kg
16+40 kg
19.5+66 kg
20+66 kg
EBM module size (W x D x H)
88.7 x332 x440 mm
88.7 x430 x440 mm
88. 7 x430 x440 mm
88.7 x608 x440 mm
88.7 x608 x440 mm
88.7 x608 x440 mm
130.6 x623 x440 mm
130.6 x623 x440 mm
EBM module RACK
2U
2U
2U
2U
2U
2U
3U
3U
EBM module weight
16 kg
29 kg
29 kg
43 kg
40 kg
40 kg
66 kg
66 kg
* @ 75% of nominal load.&
&
Parallel redundant operation for business continuity
To achieve the highest level of availability and to power critical utilities, NETYS RT UPS modules above 3 kVA can be configured for 1:1 redundancy. Redundant operation (1+1) means: the system incorporates one more UPS module than is needed to protect the load ; in the event of a breakdown, it guarantees sufficient power supply capacity to the load by maintaining online protection. Parallel technology is based on the principle of load sharing, whereby both units are always kept active. In a redundant configuration, overall system availability is much higher than a conventional UPS system using similar technology. 1+1 redundant configuration does not require additional circuits and can therefore be set up at a later date, simply by using two UPS modules and a collector / manual bypass module which simplifies cabling and maintenance of the UPS installation. To further streamline the solution, it is also possible to select between operation with separate battery or shared battery, which is extremely useful in the case of applications requiring high levels of autonomy.
&
