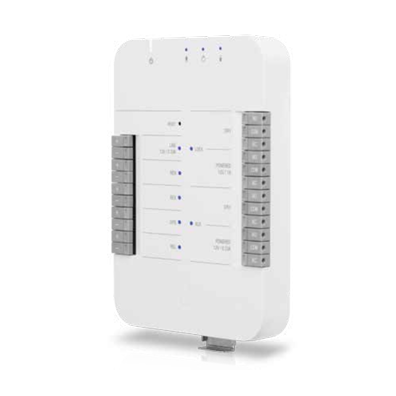

Ubiquiti | UA-HUB | UniFi Access Hub
Upgrade your access control system with the UniFi Access Hub, the ultimate hub for comprehensive access management. Powered by a robust 802.3bt (PoE++) switch, this hub is designed to handle the most demanding access control needs while maintaining efficiency. With three 802.3af PoE ports specifically crafted for UniFi readers and G3 Flex surveillance cameras, you can easily integrate these devices for a seamless and secure access solution.
The UniFi Access Hub's versatility shines through its compatibility with most locks, thanks to its 12V power and dry relay support. This means that you can tailor your access control system to your specific needs while ensuring maximum security. Plus, with four inputs available for motion sensors, request-to-exit devices, and door position switches, you can customize your access solution even further.
Managing your access system is a breeze with the UniFi Access Application in UDM-Pro. This intuitive platform provides you with full control and visibility into your access control network. The UniFi Access Hub also boasts DIN-rail mounting, making installation a straightforward process. Upgrade your access control infrastructure with the UniFi Access Hub and enjoy advanced security and convenience in one powerful package.
FEATURES
-
Powered by 802.3bt (PoE++) switch
-
Three 802.3af PoE ports for UniFi readers and G3 Flex surveillance camera
-
12V powered and dry relays compatible with most locks
-
Four inputs for motion sensors, request-to-exit devices and door position switch
-
Managed with UniFi Access Application in UDM-Pro
-
DIN-rail mounting
SPECIFICATIONS
- Dimensions: 190 x 126 x 33 mm
- Weight: 457 g
- Colour: White
- Enclosure Characteristics: Plastic Enclosure with Metal Mount Plate
- Mounting Options: DIN Rail
- Networking Interface: (4) 1 Gbps Ethernet
- Power Method: 802.3bt PoE
- Input Terminals:
- REX - Request to Exit
- REN - Request to Enter
- REL - Remote Release
- DPS - Door Position Sensor
- Dry Output Relay
- Lock Rated 30VDC, up to 1A
- Aux Rated 30VDC, up to 1A
- Powered Output Relay
- Lock 12VDC, up to 1A
- Aux 12VDC, up to 1A
- Line 12VDC, up to 0.33A
- LEDs
- (1) System, (3) PoE Out, (4) Input
- (2) Output Relays, (1) 12VDC Out
- Buttons: Terminal Blocks, Reset
- Operating Temperature: 0 to 40° C
- Operating Humidity: 5 - 90% Noncondensing
- Certifications: CE, FCC, IC
WARRANTY
1-year limited warranty
Specifications
SKU | UB.UA.HUB |
---|---|
Brand | Ubiquiti |
Manufacturer Part# | UA-HUB |
GTIN | 817882029117 |
Colour | White |
Warranty | 1 Year |
